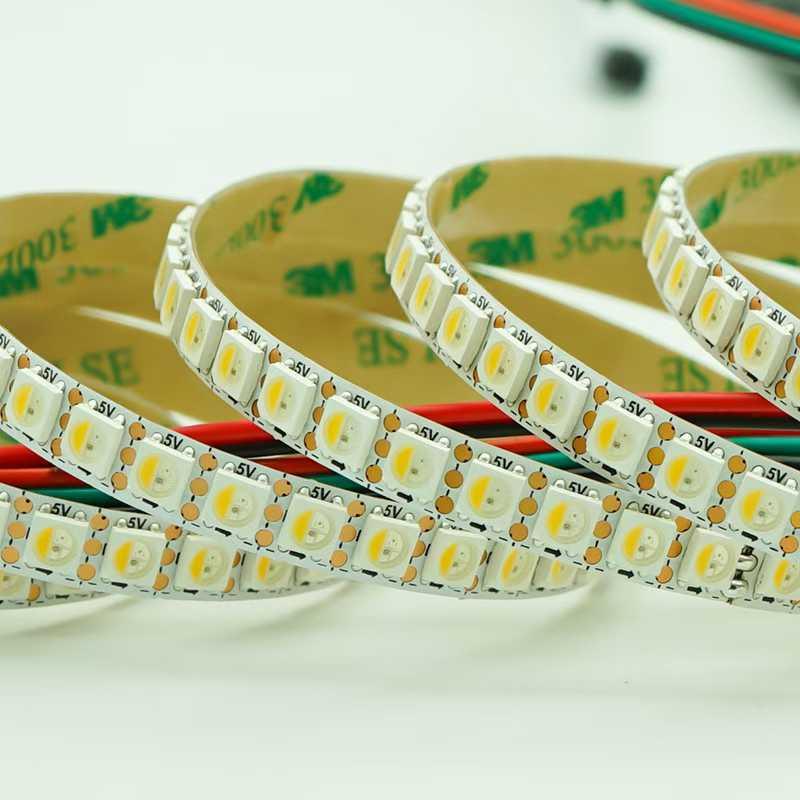

What is RGBW addressable led strip?
An RGBW addressable LED strip is a flexible digital lighting product that combines Red, Green, Blue, and a dedicated White channel per pixel, with each pixel/segment controllable independently via built-in/external ICs (Integrated Circuits) - unlike non-addressable RGBW strips that can only change the entire strip's color at once.
Core Definition & Components
RGBW Pixels: Each LED package has 4 channels (R/G/B/W). The white channel delivers pure, neutral/warm/cool white, far cleaner than RGB-mixed "fake white." Common ICs include SK6812 (5V, individually addressable), TM1814 (12V/24V, external IC, segment control), WS2814, UCS512 (DMX), etc.
Addressability: Digital data signals (SPI, DMX512) let you program brightness/color for every pixel. You can create dynamic effects like chasing, flowing, gradients, and sync with music/inputs.
Voltages & Formats: 5V (common for SK6812), 12V/24V (higher power, longer runs, less voltage drop). Typical densities: 30/60/120/144 LEDs per meter; SMD 5050/3535 packages on flexible PCB, cuttable at pixel marks.
Break-continue: Some dual-signal ICs (WS2813, WS2815) keep the strip working if one signal line breaks, improving reliability.
Why Choose Our RGBW addressable led strips?
True RGBW Color Performance
Our strips come with an independent pure white LED chip, producing brighter, more natural, and clean white light compared to standard RGB strips. Colors are vivid, soft, and highly saturated for all kinds of lighting scenes.
Dual Control Protocols Supported
Our RGBW addressable LED strips: DMX512 and SPI are available, compatible with most mainstream controllers, dimmers, and control systems for easy project integration.
we can supply addressable LED strips such as WS2812, WS2812B, WS2813, WS2815B, WS2818, SK6812, UCS1903, and UCS2904, etc. for high efficiency and low cost.
Real Pixel-by-Pixel Addressable Control
Each LED can be controlled individually, supporting chasing, flowing, gradient, strobe, color chasing, and music-synced effects. Ideal for home decoration, hotels, bars, architectural lighting, and stage projects.
High-Stability IC & Reliable Quality
Premium driver chips ensure stable signal transmission, low power consumption, and long lifespan. Strict quality testing guarantees consistent performance and low failure rates even for long-length installations.
Excellent Brightness & Color Consistency
High brightness, even light emission, no dark spots or color unevenness. High CRI ensures realistic color rendering for professional lighting environments.
Flexible & Easy Installation
Flexible PCB design, cuttable per pixel, strong self-adhesive backing, simple wiring, suitable for both indoor and outdoor applications.
Full Range of Options
We supply 5V / 12V / 24V, IP20 indoor / IP65 / IP67 / IP68 waterproof versions, with 30/60/72/84/96/120 LEDs per meter to meet different project requirements.
Stable Supply & Professional Service
Strong production capacity ensures on-time delivery for bulk and frequent orders. We provide professional technical support and efficient after-sales service.
RGBW addressable LED STRIPS application
1. Hotel & Hospitality Lighting
2,Home Theater & TV Backlighting
3,Gaming Room & E-Sports Setup
4,Kitchen Under-Cabinet Lighting
5,Architectural Facade & Building Outline
6,Shopping Mall & Window Displays
7,Street Dazzling, Decoration building, project, park and river.
8, Landscape & Garden Lighting
9, Dynamic lighting effects for bridge outlines, tunnel walls, guardrails, and landscape decoration
10, Decorate for festive scenes and interactive lighting installations.
Our RGBW Addressable LED Strip Light Parameters
| Voltage | SMD | PCB width | Power(W) | Color | Cut section |
| DC 5V | 5050 30LED/M | 10MM | 6W | SPI-RGB | 33.3mm |
| DC 5V | 5050 60LED/M | 10MM | 11W | SPI-RGB | 16.67mm |
| DC 5V | 5050 60LED/M | 10MM | 11W | SPI-RGBW | 16.67mm |
| DC 5V | 5050 120LED/M | 12MM | 22W | SPI-RGBW | 8.33MM |
About our factory
TL is a professional custom LED strip manufacturer with a 3,000㎡ dedicated production facility and a skilled team of over 50 experienced employees. Equipped with advanced LED strip manufacturing equipment-including high-speed SMT machines, precision reflow soldering systems, and automated production lines-we achieve highly automated,standardized production for most processes, ensuring exceptional consistency, efficiency, and quality in every batch of LED strip lights.
Our automated manufacturing capabilities enable us to deliver reliable, high-performance LED strips with strict tolerance control, fast lead times, and scalable production to meet both small-batch custom orders and large-volume wholesale demands. Backed by rigorous quality control and international certifications, we specialize in tailored LED lighting solutions for global clients, making us a trusted partner for commercial, industrial, and residential LED strip projects worldwide.
OUR CERTIFICATIONS
FAQ
Q: What is SPI and addressable difference ?
A: SPI (Serial Peripheral Interface) is a serial peripheral interface used to transmit data between the controller and LED IC, enabling single-point/segment-by-segment independent control,
which is different from the overall control of traditional parallel RGB.
The controller uses the SPI protocol to send address-specific data (e.g., which pixel to control, what color to display) to the LED driver ICs.
Addressable is including SPI, DMX and so on.
Q: What is the difference between RGBW and RGB Addressable Strips?
A: RGB Addressable Strips: Only three color chips; white light is mixed by RGB colors, which is prone to color deviation and low brightness.
RGBW Addressable Strips: Equipped with an independent white light chip, featuring purer white light, higher brightness, and lower power consumption. They are ideal for scenarios requiring high color rendering index or warm white light.
Q: What are the mainstream IC models for RGBW addressable LED strips?
A:The mainstream IC models are WS2814, SK6812-RGBW, UCS2904, and TM1814. All are 4-channel ICs compatible with the SPI protocol, and it is important to ensure the IC model matches the controller's protocol when selecting.
Q: What voltages are best for RGBW addressable LED strips, and how to choose?
A:Short distance (≤2m) + DIY/small projects → 5V
Medium distance (2–5m) + home/commercial general use → 12V (most cost-effective)
Long distance (>5m) + outdoor/large-scale projects → 24V
Q: What is the power range of RGBW addressable LED strips, and how to match the power supply?
A: 5050 RGBW addressable strips are about 12–24W/m, and 144 LEDs/m models are about 21W/m. When matching the power supply,
the rated power of the power supply must be ≥ the total power of the LED strip × 1.2 to reserve 20% margin and avoid insufficient power.
Q: What pixel densities are available for RGBW addressable LED strips, and how to choose?
A: Regular pixel densities are 30/60/72/96/144 LEDs/m. Higher pixel density results in a more uniform and smooth light effect. 60 LEDs/m is the most cost-effective for general ambient lighting,while 144 LEDs/m is ideal for high-precision dynamic effects such as stage lighting.
Q: What common color orders are there for RGBW addressable LED strips, and why is it important to match them?
A: A14: Common color orders are GRBW, RGBW, and BGRW. The color order must be consistent with the controller's settings; otherwise, the displayed color will be distorted (e.g., red appears
green). Check the strip's datasheet or label to confirm its color order.
Q: What causes the RGBW addressable LED strip to not light or partially not light, and how to solve it?
A:Causes include insufficient power supply, wrong wiring, damaged ICs, or pixel count exceeding the controller's maximum load. Solutions: Check the V+/GND/DIN wiring;replace with a higher-power power supply; confirm the controller's maximum pixel support and adjust the strip length; replace damaged segments if necessary.
Q: What causes the RGBW addressable LED strip to flicker, glitch, or show garbage code, and how to solve it?
A: Causes include signal interference, excessively long data cables, poor grounding, or unstable power supply. Solutions: Shorten the data cable; add a signal amplifier;ensure reliable common ground; replace with a stable power supply.
